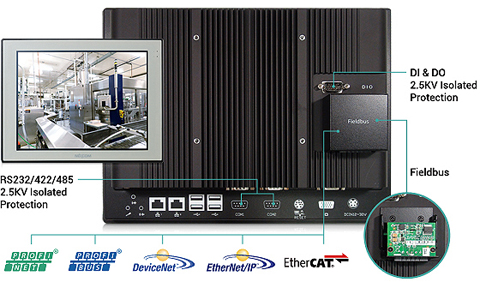

NEXCOM fieldbus-enabled industrial panel PC series is compatible with most PLCs in the world. The series has consolidated Hilscher fieldbus technology and Schneider Citect software to support PROFINET, PROFIBUS, DeviceNet, EtherNet/IP and EtherCAT protocols. The series can communicate with the PLCs, PC-based controllers and remote I/Os from major brand names, including Siemens, Allen-Bradley, Beckhoff, and Schneider Electronics. Therefore, NEXCOM fieldbus-enabled industrial panel PC series is suited for monitoring and management of equipment, production lines, environments, power, and facilities.

To provide a comprehensive overview of ongoing activities in a factory, NEXCOM fieldbus-enabled industrial panel PC series helps system integrators circumvent the perennial problem of fieldbus compatibility, enabling 20 percent savings and speeding up SCADA/HMI solution delivery by weeks. Also, NEXCOM fieldbus-enabled industrial panel PC series features two RS232/422/485 ports and four channels of DI/O which offer 2.5KV isolated protection. In addition, the screen brightness can be adjusted using backlight control buttons.

Target Application

• Facility management
• Equipment monitoring and management
• Production line monitoring and management
• Environmental monitoring
• Capacity management
• Power management

Main Features

• Embedded Hilscher fieldbus technology for PROFINET, PROFIBUS, DeviceNet, EtherNet/IP and EtherCAT support
• Schneider Citect graphic control software
• NEXCOM Applied Panel PC

Ordering Information


APPC 1232T (P/N: A0IA1232T00X0)

12.1" SVGA LED Backlight Touch Panel PC, Intel^® Atom™ D2550 1.86 GHz, touch screen, 4GB DDR3, 2xRS232/422/485 and 4x4 DI/O with isolated protection, Brightness adjustment buttons, Fieldbus module installed

APPC 1237T (P/N: A0IA1237T00X0)

12.1" XGA LED Backlight Touch Panel PC, Intel^® Atom™ D2550 1.86 GHz, touch screen, 4GB DDR3, 2xRS232/422/485 and 4x4 DI/O with isolated protection, Brightness adjustment buttons, Fieldbus module installed

APPC 1532T (P/N: A0IA1532T00X0)

15" XGA LED Backlight Touch Panel PC, Intel^® Atom™ D2550 1.86 GHz, touch screen, 4GB DDR3, 2xRS232/422/485 and 4x4 DI/O with isolated protection, Brightness adjustment buttons, Fieldbus module installed

APPC 1732T (P/N: A0IA1732T00X0)

17" SXGA CCFL Backlight Touch Panel PC, Intel^® Atom™ D2550 1.86 GHz, touch screen, 4GB DDR3, 2xRS232/422/485 and 4x4 DI/O with isolated protection, Brightness adjustment buttons, Fieldbus module installed

APPC 1932T (P/N: A0IA1932T00X0)

19" SXGA LED Backlight Touch Panel PC, Intel^® Atom™ D2550 1.86 GHz, touch screen, 4GB DDR3, 2xRS232/422/485 and 4x4 DI/O with isolated protection, Brightness adjustment buttons, Fieldbus module installed

Mini-PCIe Fieldbus Interface Module Selection Table

Photo	Model	Protocol	P/N
	FBI90E-PNM	PROFINET Master	P/N : 88IA1932T00X0
	FBI90E-EP	Ethernet/IP Master	P/N : 88IA1932T01X0
	FBI90E-ECM	EtherCAT Master	P/N : 88IA1932T02X0
	FBI90E-PBM	PROFIBUS Master	P/N : 88IA1932T03X0
	FBI90E-DNM	DeviceNet Master	P/N : 88IA1932T04X0

12V, 60W AC/DC power adapter w/o power cord (P/N : 7400060017X00)
