NEXCOM has expanded its APPC series with nine fanless panel PCs powered by Intel^® Atom™ processor D2550. To accommodate individual's preference for display sizes, the APPC series offers 12.1, 15, 17 and 19-inch touch screen with up to 1280x1024 SXGA resolution; and both XGA and SVGA resolutions are available in 12.1-inch models. Combining fanless structure, IP65-certified front panel, flush screen design, wireless communication support and serial ports with isolated protection, the fanless panel PC APPC series is ideal for used in assorted industries, ranging from automobile manufacturing and electrical substation so industrial laundry.

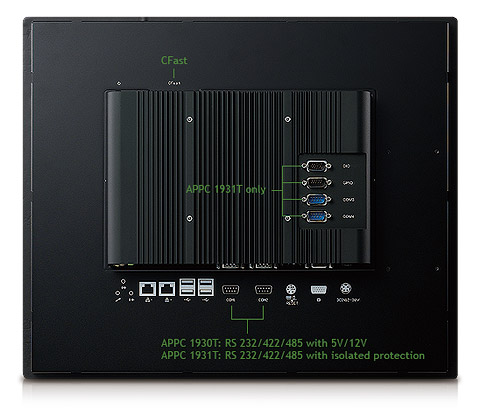

The fanless panel PC APPC series can be categorized two types based on the I/O ion. Take the 19" models for example, APPC 1930T has two RS232/422/485 ports with support for 5V and 12V power supply over the RI pin. In the meanwhile, APPC 1931T provides two RS232/422/485 ports and four channels of DI/O, all providing 2.5KV isolated protection. In addition, APPC 1931T provides two RS 232 ports supporting power feed, one GPI/O port supporting two more channels of DI/O and buttons for brightness adjustment. The dual display configuration is supported by all models. Paired with NEXCOM APPD industrial touch monitor of the same size, the APPC series will allow for visual uniformity on the factory floor.

Main Features

• 12.1"~19" touch panel PC with AUO industrial-grade G-model panel
• Support NEXCOM APPD industrial touch monitors for dual display
• IP65-compliant flush touch panel
• 2x mini-PCIe for WWAN/WLAN communications
• 1x CFast socket and 1x HD bay for SATA HDD/SATA DOM
• Mounting support: panel/wall/stand/VESA 100mm x 100mm
• Wide range power input: 12V~ 30V DC

Ordering Information

APPC 1930T (P/N: 10IA1930T00X0)

19" SXGA LED backlight touch panel PC, Intel^® Atom™ D2550 1.86 GHz, 1GB DDR3, 2x RS232/422/485

APPC 1931T (P/N: 10IA1931T00X0)

19" SXGA LED backlight touch panel PC, Intel^® Atom™ D2550 1.86 GHz, 1GB DDR3, 2x RS232/422/485 and 2x2 DI/O with isolated protection, 2x RS232, 4x4 GPI/O, brightness adjustment buttons

APPC 1730T (P/N: 10IA1730T00X0)

17" SXGA CCFL touch panel PC, Intel^® Atom™ D2550 1.86 GHz, 1GB DDR3, 2x RS232/422/485

APPC 1731T (P/N: 10IA1731T00X0)

17" SXGA CCFL touch panel PC, Intel^® Atom™ D2550 1.86 GHz, 1GB DDR3, 2x RS232/422/485 and 2x2 DI/O with isolated protection, 2x RS232, 4x4 GPI/O, brightness adjustment buttons

APPC 1530T (P/N: 10IA1530T00X0)

15" XGA LED backlight touch panel PC, Intel^® Atom™ D2550 1.86 GHz, 1GB DDR3, 2x RS232/422/485

APPC 1531T (P/N: 10IA1531T00X0)

15" XGA LED backlight touch panel PC, Intel^® Atom™ D2550 1.86 GHz, 1GB DDR3, 2x RS232/422/485 and 2x2 DI/O with isolated protection, 2x RS232, 4x4 GPI/O, brightness adjustment buttons

APPC 1230T (P/N: 10IA1230T00X0)

12.1" SVGA LED backlight touch panl PC, Intel^® Atom™ D2550 1.86 GHz, 1GB DDR3, 2x RS232/422/485

APPC 1231T (P/N: 10IA1231T00X0)

12.1" SVGA LED backlight touch panel PC, Intel^® Atom™ D2550 1.86 GHz, 1GB DDR3, 2x RS232/422/485 and 2x2 DI/O with isolated protection, 2x RS232, 4x4 GPI/O, brightness adjustment buttons

APPC 1235T (P/N: 10IA1235T00X0)

12.1" XGA LED backlight touch panel PC, Intel^® Atom™ D2550 1.86 GHz, 1GB DDR3, 2x RS232/422/485
